Victory 1:100 - set of ropes

Code: SET-VIC017
Brand: HiSModel
€33,36 €27,57 excl. VAT
At stock (7 pcs)

Recommended profesional rigging ropes by AMATI for model HMS Victory 1:100, Heller

Detailed information

Product detailed description

Model kit HERE
Complete accessories HERE

instructions HERE



Set contains:
Rope color - Diameter in tenths of a millimeter / rope length

Natural color: 2x N10/40, N25/100; N50/20;
Black color: 2x B18/40; 2x B25/20; 2x B50/20, B75/20; B100/20
Number of pcs 12


In the ship plans section of this websit, you can find a rigging table based on information from the book The 100 gunship Victory. In this book the original tables used by the English Navy for the rigging of Victory ships are listed at the end. The table contains the rope numbers listed in this table + the rope numbers listed in the plan where I have plotted the blocks. The name of the rope, the actual diameter of the rope, and the conversion to that scale are given for the respective ropes. And the size of the blocks for that scale, and the type of blocks.

However, if you find it difficult to search this table, I am sending a simplified listing of rope usage by Amati:
Stay ropes:
Main and Fore Lower stay – 0,75mm
Main and Fore Lower prevenstay – 0,5mm
Main and Fore Topmast stay - 0,5mm
Main and Fore Topmast prevenstay - 0,25mm
Main and Fore Topmast Backstay – 0,25mm
Main and Fore Topgallant mast stay - 0,25mm
Main and Fore Topgallant mast Backstay– 0,1mm
Main and Fore Royal mast Backstay– 0,1mm

Mizzen Lower stay – 0,75mm
Mizzen Lower prevenstay – 0,5mm
Mizzen Topmast stay - 0,25mm
Mizzen Topmast Backstay – 0,25mm
Mizzen Topgallant mast stay - 0,1mm
Mizzen Topgallant mast Backstay– 0,1mm

Shrouds
Main and Fore Lower shrouds – 0,5mm
Mizzen Lower shrouds – 0,25mm
Main and Fore Top shrouds – 0,25mm
Mizzen Top shrouds – 0,25mm
Main and Fore Topgallant shrouds – 0,1mm
Mizzen Topgallant shrouds – 0,1mm

Ropes for Running rigging:

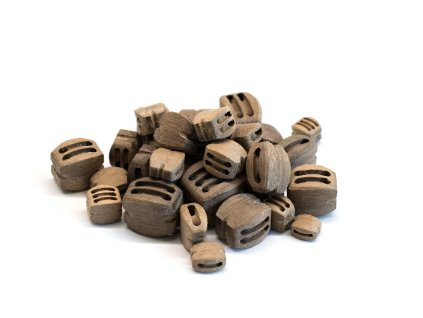

For simplicity - a certain blocks size corresponds to a given rope thickness.

Height of blocks Diameter of rope Diameter of Amati ropes
2,00 0,16 0,1
3,00 0,24 0,25
4,00 0,32 0,25 or 0,5
5,00 0,4 0,5
6,00 0,48 0,5
7,00 0,56 0,5

Additional parameters

Category: Victory - 1:100 Heller
Weight: 0.2 kg
1: R-N10/40 Natural rope th. 0,1mm/l. 40m (2x)
2: R-N25/100 Natural rope th. 0,25mm/l. 100m (1x)
3: R-N50/20 Natural rope th. 0,5mm/l. 20m (1x)
4: R-B18/40 Black rope, nylon th. 0,18mm/l. 40m, on ratlines (2x)
5: R-B25/20 Black rope th. 0,25mm/l. 20m (2x)
6: R-B50/20 Black rope th. 0,5mm/l. 20m (2x)
7: R-B75/20 Black rope th. 0,75mm/l. 20m (1x)
8: R-B100/20 Black rope th. 1,0mm/l. 20m (1x)
