Constitution - Hooks and Eyelets for guns

Code: SET-CON010
Brand: HiSModel
€28,09 €23,21 excl. VAT
At stock (>10 pcs)

Eyelets and hooks for the hoists of the visible guns on the decks.
For model: USS Constitution
Kit manufacturer: Revell
Scale: 1:96
Quantity: 212 eyelets and 268 hooks
Material: brass, black patina
Accessory manufacturer: HiSModel
Detailed description below.

Detailed information

Product detailed description

There are 22 visible Carronades on the upper decks of Constitution.

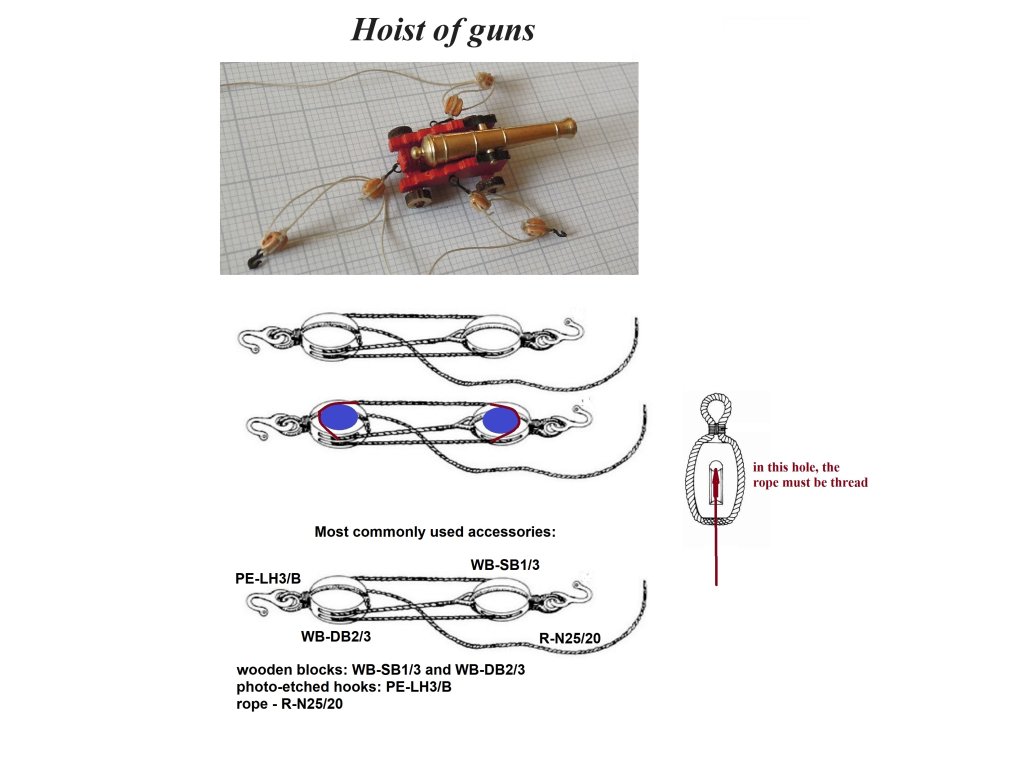

Each carronade has four hoist - two on the sides of the carronade in the forward section (to move the carronade into firing position), and two more hoist to adjust the direction of fire.
Each hoist contains 2x hooks PE-LH3/B
Also need 4 eyelets on the bort and on the gun carriage. 2 eyelets on the breeching rope. Total of 10 eyelets PE-LO1,5/B
Therefore the following hooks and eyelets are needed:
PE-LH3/B - 4*2*22 = 176 pcs of hooks height 3 mm
PE-LO1,5/B - 10*22 = 220 pcs of eyelets diameter 1,5 mm

There are 6 long guns on each side of the main gun deck:

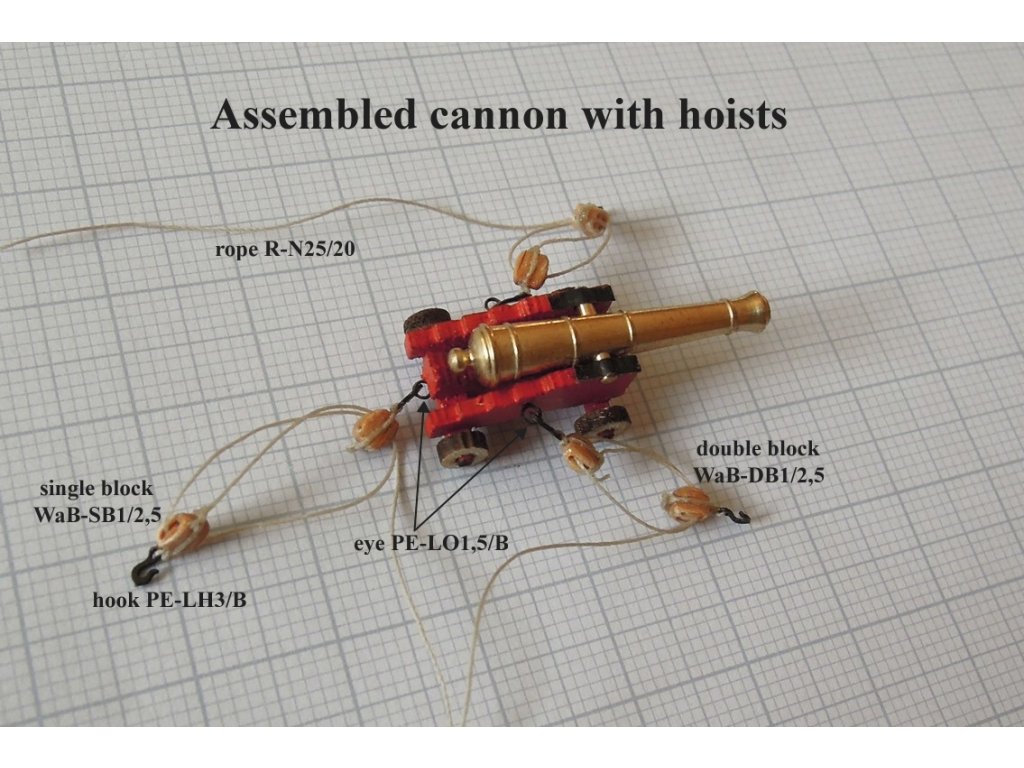

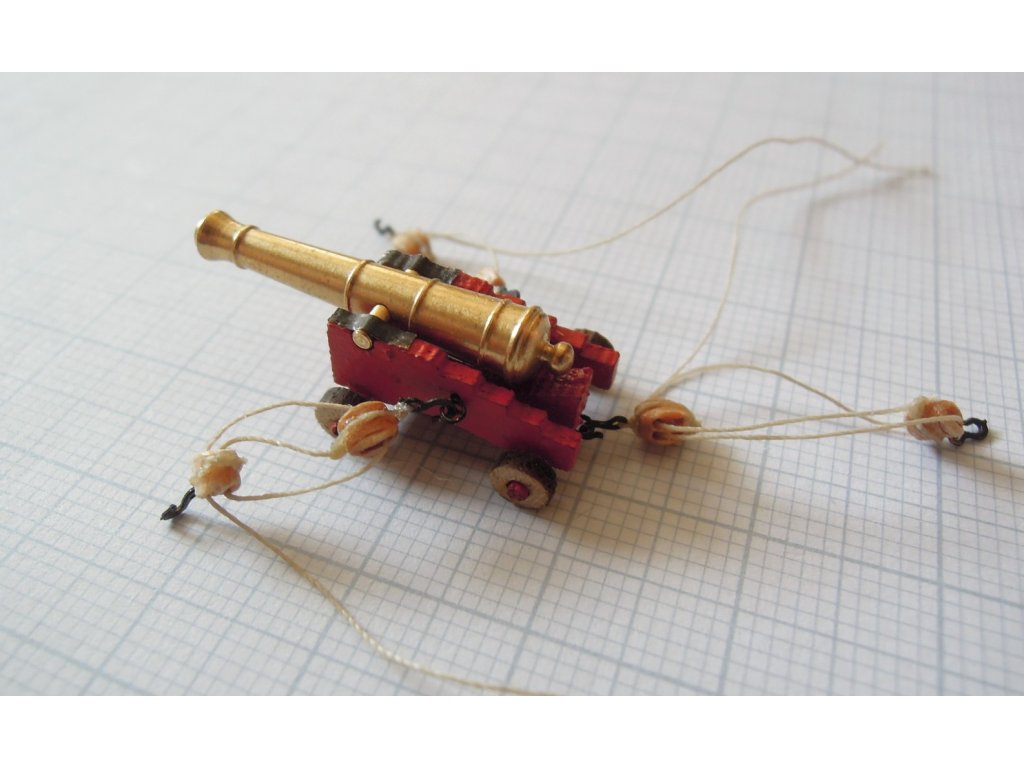

Each gun has three hoists - two on the sides of the gun carriage (to move the halyard into firing position), one more hoist at the rear of the gun carriage (moving backwards to reload). The rear hoist was only on the gun carriage when the ship was in fighting position. The hoists were hooked into the bort and on the sides of the gun carriage and in the lug on the deck of the ship behind the gun carriage. Plus, the lugs for the Breeching rope. Total of 6 hooks PE-LH3/B and 8 eyelets PE-LO1,5/B
That's why you need these hooks and eyelets:
PE-LH3/B - 6*6 = 36 pcs.
PE-LO1,5/B - 8*6 = 48 pcs.

Hooks and eyes quantity in total:
PE-LH3/B - 176+36= 212 pcs = 4x set PE-LH3-60/B
PE-LO1,5/B - 220+48 pcs 268 pcs = 6x set PE-LO1,5/B

Additional parameters

Category: Constitution, United States - 1:96 Revell

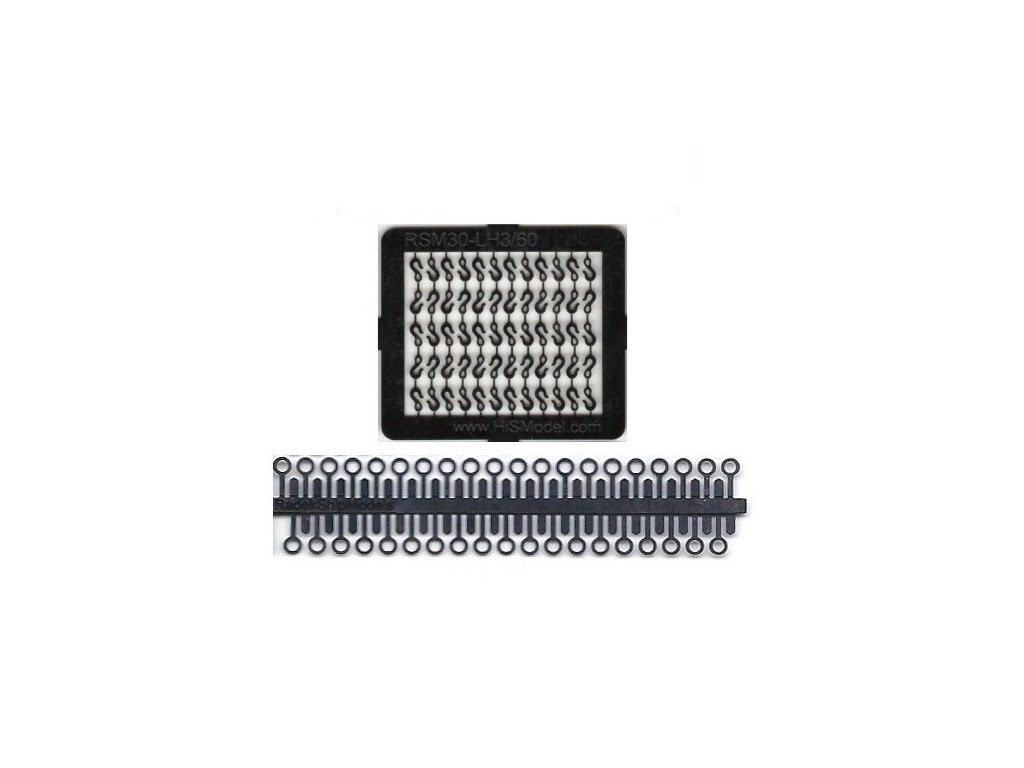

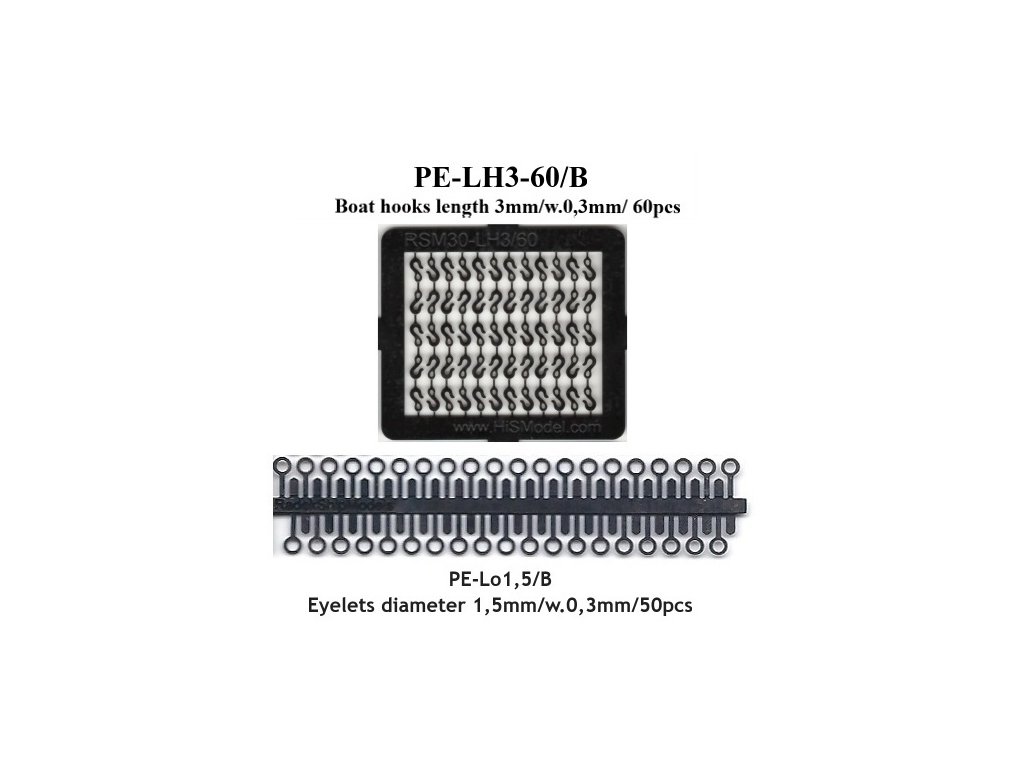

1: PE-LO1,5/B Eyelets 1,5mm/th.0,3mm/50pcs - Black patinate (6x)
2: PE-LH3-60x/B Ship hooks 3mm/th.0,3mm/60pcs - patinated in black (4x)
