Constitution - 268 pcs Blocks of guns hoist, ropes

Code: SET-CON009
Brand: HiSModel
€81,13 €67,05 excl. VAT
Temporarily unavailable

A set of walnut blocks for the hoists of visible guns.
For model: USS Constitution, USS United States
Kit manufacturer: Revell
Scale: 1:96
Number of blocks: 268
Number of ropes: 2
Accessory manufacturer: HiSModel, Amati

Detailed information

Product detailed description

The model kit: HERE
Complete accessories: HERE
Instructions: HERE

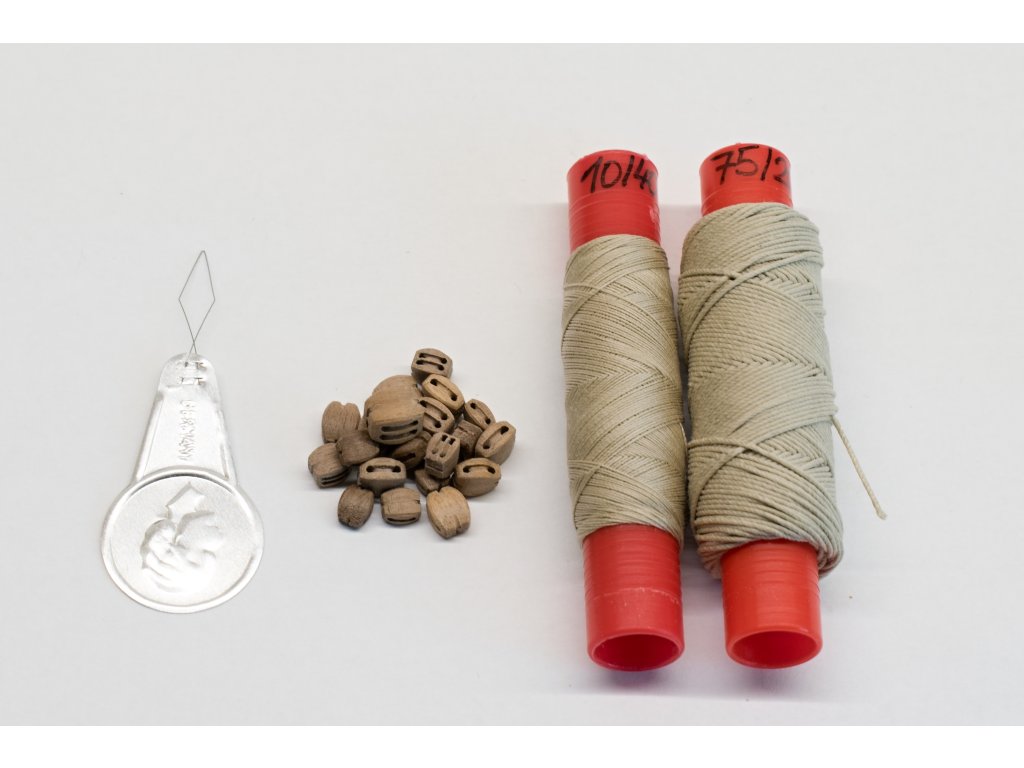

Set contain:

WaB-SB1/3 - 134 pcs
WaB-DB2/3 - 134 pcs

R-N25/20 - 1pcs
R-N75/20 - 1pcs
RT - Rope threader 2 pcs

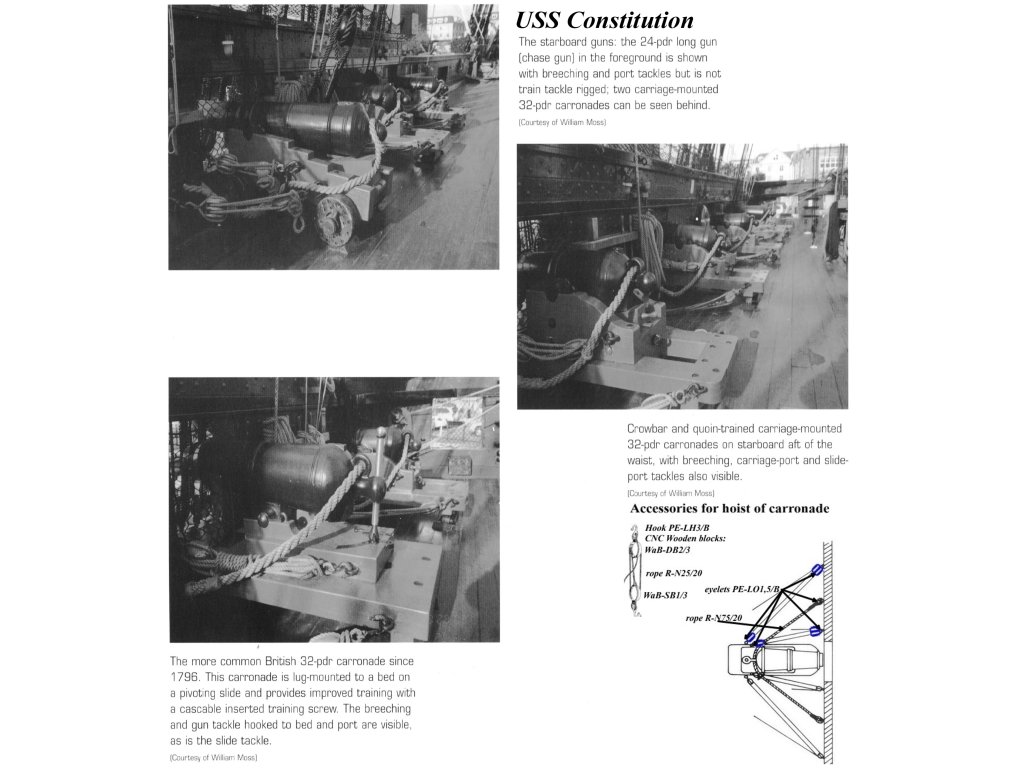

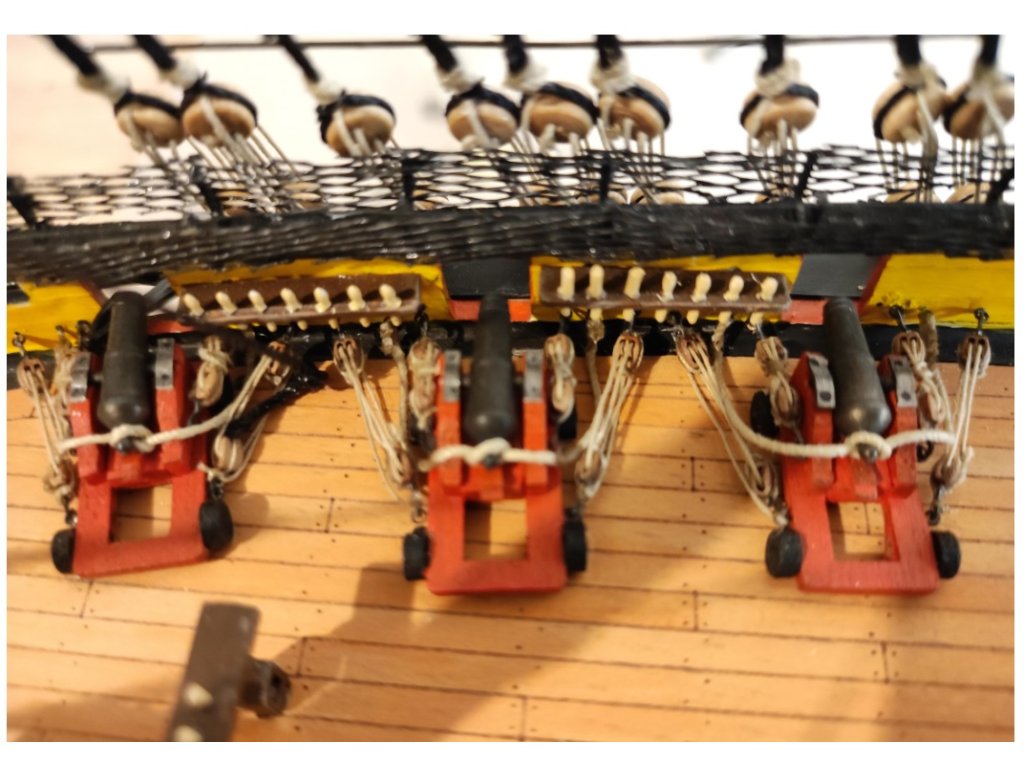

There are 22 visible carronades on the upper ship decks. Each carronade has four hoists - two hoists on each side of the gun carriage for moving guns to the firing position. And next two hoists for setting the direction of firing.

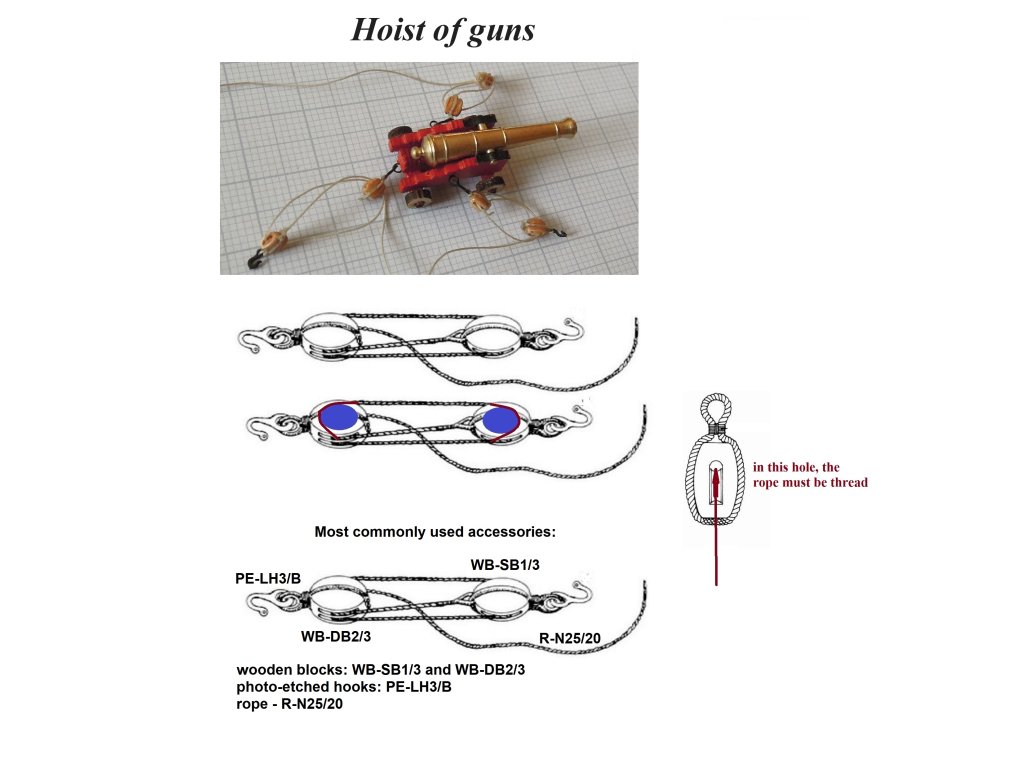

Each hoist is made of SB1/3+2DB/3 blocks
Therefore it is needed these walnut blocks:
WaB-SB1/3 - 4*22= 88 pcs
WaB-DB2/3 - 4*22= 88 pcs
and ropes for guns hoist R-N25/20 - 1pcs, Breeching rope R-N75/20 - 1pcs

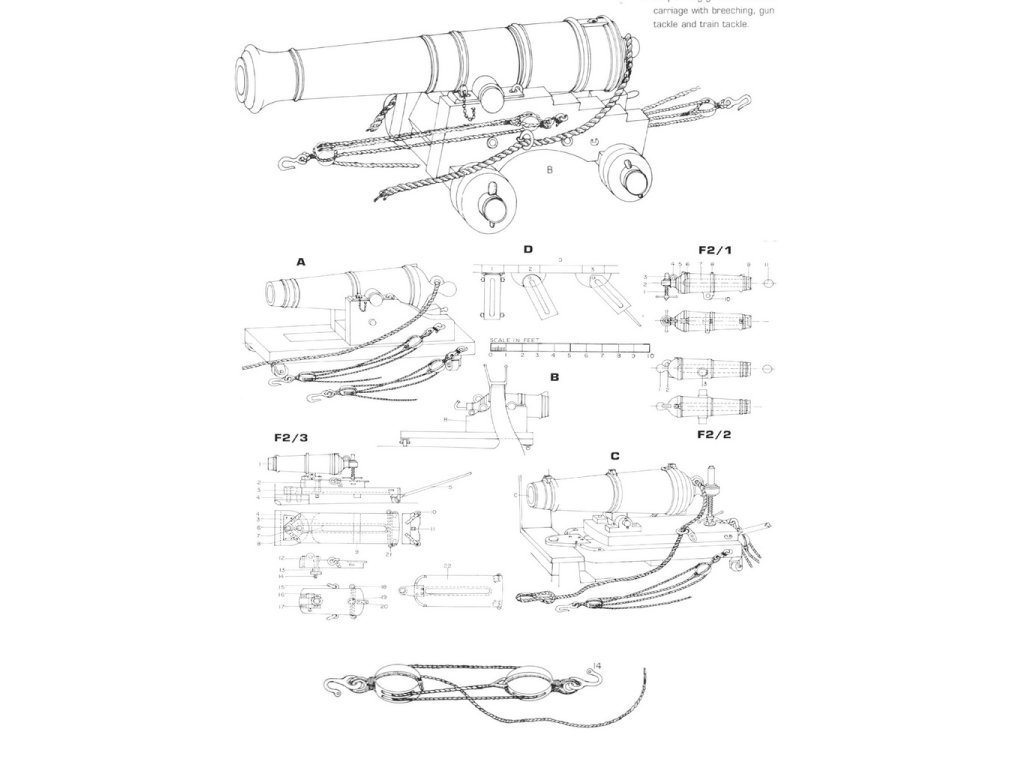

There are 6 long guns visible on both sides of the main deck. Each gun has three hoists - two on the sides of gun carriage for moving guns to firing position. And next one hoist in the back of gun for moving gun to charging position. The back hoist was on the gun only during battle. The hoist was hooked in the eyelets of the gun and the sides of the ship and in the eyelets on the deck of ship behind the gun.
Each hoist is made by SB1/3+2DB/3 blocks
Therefore it is needed these wooden blocks:
WaB-SB1/3 - 3*12= 36 pcs
WaB-DB2/3 - 3*12= 36 pcs
and ropes for guns hoist R-N25/20 - 1pcs,  Breeching rope R-N75/20 - 1pcs

Additional parameters

Category: Constitution, United States - 1:96 Revell
1: TR Rope threader (2x)
2: R-N25/20 Natural rope th. 0,25mm/l. 20m (1x)
3: R-N75/20 Natural rope th. 0,75mm/l. 20m (1x)
4: WaB-SB1/3 CNC single block 1/3mm - Walnut (134x)
5: WaB-DB2/3 CNC double block 2/3mm - Walnut (134x)
